OBLIK Brace Sections

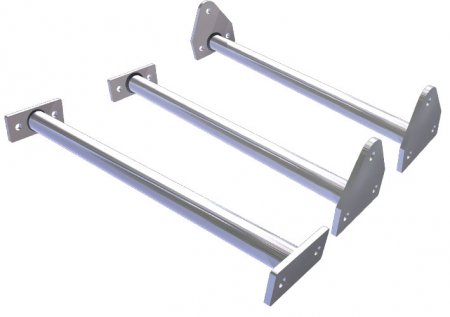

Brace sections come in three variations: brace with plain ends, single suspension and double suspension end.

Bracing components weigh less than 1.5 kg per unit and are manufactured from 48 mm tube.

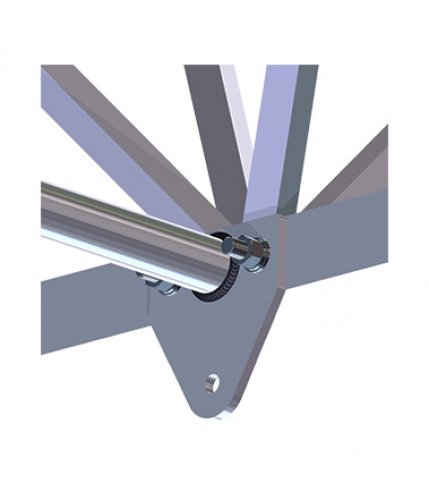

All nodes, chords and bracing members in the top plane of the structure can be loaded and have a rated capacity. Oblik is supplied with an operation and maintenance manual containing load tables for a predetermined set of load cases.

Bracing members in the upper and lower plane of the structure have a point loading capacity of 350kg (771 lbs) and 900kg (1,984 lbs) as a uniformly distributed load.

By connection of a scaffold tube between the brace members, the tube can support a single point load of 240kg (529 lbs) or a distributed load of 400kg (881 lbs).
